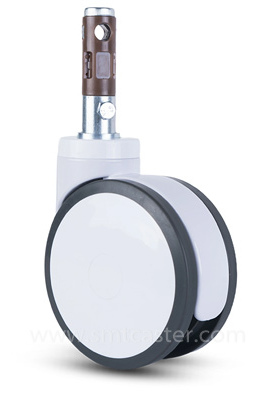

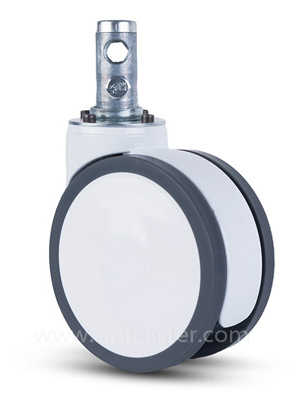

5.0-8.0 Inch Medium Grey TPR Plug In Big Stem Caster Wheels (160kg)
Step 1: Mounting Style
Rigid
✓
Swivel Plate
✓
Threaded Stem
✓
Bolt Hole
✓
Swivel Stem
✓
Stem Ring
✓
Expanding Stem
✓
Others
✓
Step 2: Wheel Diameter
5“(125mm)
6“(150mm)
8 Core Advantages of TPR Hospital Bed Central Control Casters (Double Ball Bearing with 45° Cam Locking)
- Central Control Locking System: Single pedal controls all connected casters simultaneously. Two-function: free swivel + full wheel & swivel lock. Quick, one-step operation for caregivers.
- TPR (Thermoplastic Rubber) Tread: Soft TPR tread delivers ultra-quiet rolling. Non-marking on all hospital floor types. Excellent grip on vinyl and tile.
- Aluminum Alloy Housing: Lightweight aluminum alloy housing reduces bed weight for easier maneuvering. Corrosion-resistant for long-term hospital use.
- 45° Progressive Cam Locking: 45° progressive cam — smooth and secure. Prevents accidental disengagement during patient transport.
- Short (S) & Long (L) Stem Options: S-type: 32x50 mm for compact installations. L-type: 28x98.5 mm for standard bed frames. Both ensure wobble-free mounting.
- Double Ball Bearing Precision: Precision dual ball bearing raceway ensures whisper-quiet 360° rotation under full load. Reduces nurse push force significantly.
- Hospital-Grade Durability: Tested for 100,000+ lock/unlock cycles. Designed for continuous 24/7 hospital operation.
- Easy Installation: Standard central control rod compatible. Quick retrofit to most hospital bed frames with included mounting hardware.
Detailed Technical Properties
| Tread Material | TPR (Thermoplastic Rubber), Grey |
|---|---|
| Wheel Hardness | 65 +/- 5 Shore A |
| Housing Material | Aluminum Alloy |
| Bearing Type | Double Ball Bearing Raceway |
| Locking Type | Two-Function: Free Swivel + Full Lock |
| Cam Locking Angle | 45° |
| Operating Temperature | -20°C to +60°C |
| Floor Protection | Excellent — Non-marking, Silent |
| Noise Level | Ultra-Low — Silent rolling |
| Finish | Aluminum Natural / Powder Coated |
Downloads
Applications
Suitable Industries & Applications
Hospital Beds
Medical Bedding — Nursing Beds
ICU Beds
Rehabilitation Beds
Elderly Care Beds
Medical Treatment Beds
Examination Beds
Surgical Tables (with cover)
Medical Stretchers
Hospital Furniture — Cabinets
Medical Carts — Bedside
Dialysis Chairs
Recommended Usage
Suitable
Hospital wards and medical facilities
Suitable
Medical beds and bedding equipment
Suitable
Smooth hospital hard flooring (vinyl, tile, epoxy)
Suitable
Central control locking system beds
Not Recommended
Outdoor or rough surfaces
Not Recommended
Non-medical furniture or equipment
Not Recommended
Without central control rod compatibility
Not Recommended
Heavy industrial or construction applications
FAQ
Q: What is the minimum order quantity? Can I order samples first?
A: Our standard MOQ is 100 pieces per model. Sample orders are welcome.
Q: Can I customize the wheel color or bracket finish?
A: Yes! We offer full OEM/ODM customization. Custom wheel colors, bracket finishes, and branded packaging are all available.
Q: Will these casters scratch or leave marks on my floors?
A: Not at all. Our wheels are non-marking and floor-friendly. They roll smoothly on tile, concrete, vinyl and other hard surfaces.
Q: How do I install these casters on my equipment?
A: Simply bolt the caster onto the equipment base using the pre-drilled mounting holes. Bolt spacing is clearly marked in the spec table.
Q: How do I know this caster can handle my equipment weight?
A: Each caster has a rated load capacity. For a 4-caster setup, multiply single caster capacity by 3 for safety margin.
Q: What is the typical lead time for orders?
A: Sample orders ship within 3-5 business days. Bulk orders typically take 15-25 days depending on quantity.
Company Profile
SUMATIC CASTER, established in 2020 in Zhongshan City, China, is a global provider of caster solutions, offering over 40 product series and more than 1,000 models. We specialize in high-performance casters for furniture, industrial, medical, and commercial applications, aiming to enhance equipment mobility and user experience.
Manufacturing Facility
Quality Control
Our Certificates
Exhibition
Our Services
Packaging & Shipping
Technical Specifications Table
Common: Tread = TPR (Thermoplastic Rubber), Grey | Housing = Aluminum Alloy | Bearing = Double Ball Bearings | Locking = Two-Function, Cam Angle 45 deg
Central Control Stem Mount Models
| Photo | Model | Size | Wheel Diameter | Wheel Width | Load Capacity | Overall Height | Stem Spec | Function |
|---|---|---|---|---|---|---|---|---|
|
SCC2105-01S | 5.0" | 125 mm | 60 mm | 100 kg | 160 mm | Φ32×50 mm | Two-Function |
| SCC2106-01S | 6.0" | 150 mm | 60 mm | 130 kg | 185 mm | Φ32×50 mm | Two-Function | |
| SCC2105-01L | 5.0" | 125 mm | 60 mm | 100 kg | 160 mm | Φ28×98.5 mm | Two-Function | |
| SCC2106-01L | 6.0" | 150 mm | 60 mm | 130 kg | 185 mm | Φ28×98.5 mm | Two-Function |
S = Short Stem (Φ32×50 mm) | L = Long Stem (Φ28×98.5 mm)
