Best Seller06

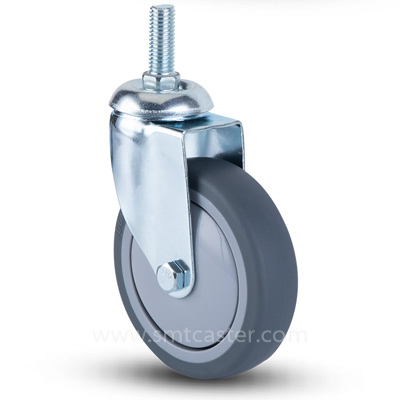

2.0-5.0 Inch Light Grey TPR Threaded Stem Caster Wheels (50-100kg)
Step 1: Mounting Style
Rigid
✓
Swivel Plate
✓
Threaded Stem
✓
Bolt Hole
✓
Swivel Stem
✓
Stem Ring
✓
Expanding Stem
✓
Others
✓
Step 2: Wheel Diameter
3“(75mm)
4“(100mm)
5“(125mm)
8 Core Advantages of Zinc-Plated TPR Stem Casters
- Single Ball Bearing Swivel: Precision bearing design ensures smooth rotation under load. Reduces push force and improves maneuverability.
- Premium TPR Wheel: High-quality TPR tread for medium-duty applications. 50 mm wide tread for superior stability under load.

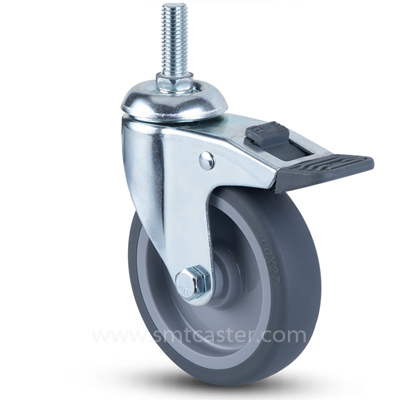

- Total Lock Brake (Type E): Locks wheel rotation and swivel movement for secure positioning.
- Steel-Zinc Plated Bracket — Premium Quality: Premium zinc-plated steel bracket offers excellent corrosion resistance and superior durability for demanding industrial and commercial environments. Precision construction ensures long service life.
- Threaded Stem Quick Installation: Standard metric threaded stem. Screw directly into pre-installed nuts for fast and stable assembly.
- Medium Duty Load Capacity: Engineered for loads up to 100 kg per caster.
- Consistent Quality: Strict QC processes. Each caster load-tested before shipment.
- Wide Temperature Range: -20°C to +60°C standard, special materials available for higher temperatures.
Additional Information
| Wheel Material | TPR (Thermoplastic Rubber), Grey |
|---|---|
| Wheel Hardness | 65 ± 5 Shore A |
| Bracket Material | Steel-Zinc Plated |
| Bearing Type | Single Ball Bearing |
| Brake Type | Total Lock — Wheel + Swivel Lock (Type E) |
| Swivel Angle | 360° Full Rotation |
| Operating Temp | -20°C ~ +60°C (-4°F ~ +140°F) |
| Floor Protection | Varies by tread material — see material guide |
| Noise Level | Moderate — Heavy duty operation |
| Surface Finish | Steel-Zinc Plated (RoHS compliant) |
Downloads
Applications
Suitable Industries & Applications
Shopping Carts & Retail Trolleys
Airport & Station Luggage Carts
Hotel Luggage & Service Trolleys
Supermarket & Grocery Carts
Library Book Carts
Warehouse Picking Trolleys
Laundry & Linen Carts
Food Service Trolleys
Garden Center & Nursery Carts
Exhibition & Display Trolleys
Mail & Parcel Distribution Carts
Healthcare Linen Trolleys
Recommended Usage
Suitable
Smooth, hard floors (tile, concrete, vinyl, epoxy)
Suitable
Indoor environments — industrial, warehouse, production facilities
Suitable
Intermittent to moderate use
Suitable
Equipment under 300 kg total load (4 casters, safety margin included)
Not Recommended
Rough outdoor terrain or gravel surfaces
Not Recommended
Continuous shock loading or impact applications
Not Recommended
Environments exceeding Ultra-Quiet operating temperature
Not Recommended
Exposure to strong acids, concentrated solvents, or corrosive chemicals
FAQ
Q: What is the minimum order quantity? Can I order samples first?
A: Our standard MOQ is 100 pieces per model. Sample orders are welcome — you can order 1–2 pieces for testing before placing a bulk order.
Q: Can I customize the wheel color or bracket finish?
A: Yes! We offer full OEM/ODM customization. You can choose custom wheel colors, bracket finishes, and even branded packaging with your logo. Custom orders have their own MOQ — contact us for details.
Q: Will these casters scratch or leave marks on my floors?
A: Not at all. Our TPR wheels are non-marking and floor-friendly. They roll smoothly and quietly on tile, concrete, vinyl, and other hard surfaces without leaving scuffs or stains.
Q: These have a threaded stem — how do I install them on my equipment?
A: Simply screw the threaded stem into a pre-installed nut or mounting hole on your equipment. We offer stem sizes (M8/M10 × 20/25/30) to fit different mounting holes. No special tools needed — just twist to secure.
Q: How do I know this caster can handle my equipment's weight?
A: Each caster supports up to 100 kg individually. For a 4-caster setup, the total safe working load is around 350 kg (safety margin included). Always distribute weight evenly across all casters. If you're unsure, our team can help you pick the right model.
Q: What is the typical lead time for orders?
A: Sample orders ship within 3–5 business days. Standard bulk orders typically take 15–25 days, depending on quantity. Custom orders may take a bit longer — we'll confirm the exact timeline when you order.
Company Profile
SUMATIC CASTER, established in 2020 in Zhongshan City, China, is a global provider of caster solutions, offering over 40 product series and more than 1,000 models. We specialize in high-performance casters for furniture, industrial, medical, and commercial applications, aiming to enhance equipment mobility and user experience.
Manufacturing Facility
Quality Control
Our Certificates
Exhibition
Our Services
Packaging & Shipping
Technical Specifications Table
Common Specifications: Wheel = TPR (Thermoplastic Rubber), Grey | Bracket = Steel-Zinc Plated | Bearing = Single Ball Bearing
Stem Mount Models
| Photo | Model | Size | Wheel Diameter | Wheel Width | Load Capacity | Overall Height | Stem Spec | Mounting Type |
|---|---|---|---|---|---|---|---|---|
|
SC0602-D10S | 2.0" | 50 mm | 20 mm | 50 kg | 69 mm | M8/M10 × 20/25/30 mm | Thread Stem |
| SC0603-D10S | 3.0" | 75 mm | 25 mm | 70 kg | 100 mm | M8/M10 × 20/25/30 mm | Thread Stem | |
| SC0604-D10S | 4.0" | 100 mm | 27 mm | 90 kg | 130 mm | M10 × 20/25/30 mm | Thread Stem | |
| SC0605-D10S | 5.0" | 125 mm | 28 mm | 100 kg | 155 mm | M10 × 20/25/30 mm | Thread Stem | |
|
|
SC0602-E10S | 2.0" | 50 mm | 20 mm | 50 kg | 69 mm | M8/M10 × 20/25/30 mm | Thread Stem with Brake |
| SC0603-E10S | 3.0" | 75 mm | 25 mm | 70 kg | 100 mm | M8/M10 × 20/25/30 mm | Thread Stem with Brake | |
| SC0604-E10S | 4.0" | 100 mm | 27 mm | 90 kg | 130 mm | M10 × 20/25/30 mm | Thread Stem with Brake | |
| SC0605-E10S | 5.0" | 125 mm | 28 mm | 100 kg | 155 mm | M10 × 20/25/30 mm | Thread Stem with Brake |
Type D = Thread Stem (Swivel) | Type E = Thread Stem with Brake (Swivel + Brake)
Scroll horizontally to see all specifications
