2.0-5.0 Inch Light Grey PVC Top Plate Caster Wheels (30-75kg)
Step 1: Mounting Style

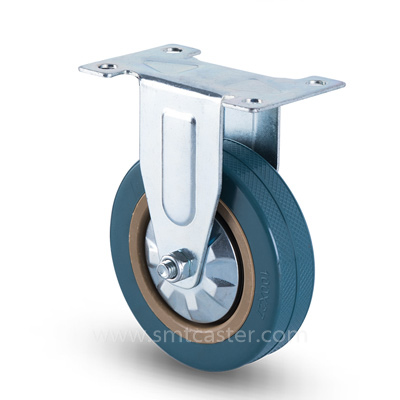

Rigid
✓
Swivel Plate
✓

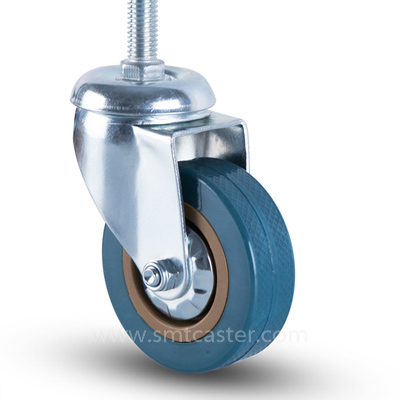

Threaded Stem
✓
Bolt Hole
✓
Swivel Stem
✓
Stem Ring
✓
Expanding Stem
✓
Others
✓
Step 2: Wheel Diameter
2“(50mm)
2.5“(65mm)
3“(75mm)
4“(100mm)
5“(125mm)
8 Core Advantages of Economy PVC Casters
- Plain Bore Design: Simple, reliable plain bore bearing for cost-effective operation. Suitable for intermittent to moderate use at walking speeds.
- Premium PVC Wheel — Blue Grey: Quality PVC tread in elegant Blue Grey — non-marking with smooth rolling. Resistant to oils, grease, and mild chemicals.

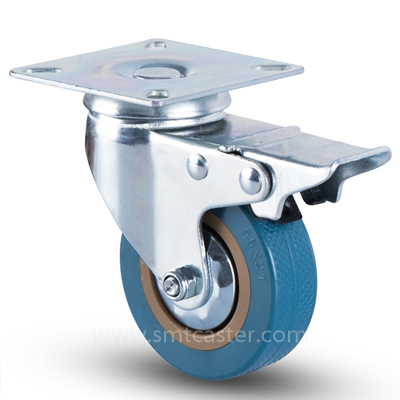

- Total Lock Brake (Type C): Simultaneously locks both wheel rotation and swivel movement. Keeps equipment securely in place. Type C plate brake.
- Steel-Zinc Plated Bracket: Zinc-plated steel bracket offers good corrosion resistance at an economical price point. Bright, clean finish suitable for indoor environments.
- Top Plate Bolt-On Mounting: Standard top plate design in rigid (A), swivel (B), brake (C) configurations. Pre-drilled mounting holes for quick installation.
- Wide Size Range: Five wheel sizes from 2.0" to 5.0" (50–125 mm) — accommodate diverse equipment heights and load requirements from 30 to 75 kg.
- Cost-Effective Choice: PVC wheels with zinc-plated brackets offer the best value for budget-conscious projects without sacrificing essential performance.
- Wide Temperature Range: Suitable for -20°C to +60°C. Reliable performance in cold storage and ambient environments alike.
Additional Information
| Wheel Material | PVC (Polyvinyl Chloride), Blue Grey |
|---|---|
| Wheel Hardness | 85 ± 5 Shore A |
| Bracket Material | Steel-Zinc Plated |
| Bearing Type | Plain Bore |
| Brake Type | Total Lock — Wheel + Swivel Lock (Type C) |
| Swivel Angle | 360° (Type B & C) / Fixed (Type A) |
| Operating Temp | -20°C ~ +60°C (-4°F ~ +140°F) |
| Floor Protection | Excellent — Non-marking, Floor-friendly |
| Noise Level | Low — Quiet rolling |
| Surface Finish | Steel-Zinc Plated (RoHS compliant) |
Downloads
Applications
Suitable Industries & Applications
Industrial Trolleys & Carts
Warehouse Material Handling Equipment
Production Line Workstations
Medical Equipment Stands
Retail & Commercial Displays
Institutional & Laboratory Carts
Food Service & Catering Equipment
Assembly Line Dollies
Maintenance & Janitorial Equipment
Logistics & Distribution Carts
Heavy Furniture & Office Equipment
Light Industrial Platforms
Recommended Usage
Suitable
Smooth, hard floors (tile, concrete, vinyl, epoxy)
Suitable
Indoor environments — industrial, warehouse, production facilities
Suitable
Intermittent to moderate use
Suitable
Equipment under 400 kg total load (4 casters, safety margin included)
Not Recommended
Rough outdoor terrain or gravel surfaces
Not Recommended
Continuous heavy industrial impact applications
Not Recommended
High temperature environments exceeding standard operating temperature range
Not Recommended
Exposure to strong acids, concentrated solvents, or corrosive chemicals
FAQ
Q: What is the minimum order quantity? Can I order samples first?
A: Our standard MOQ is 100 pieces per model. Sample orders are welcome — you can order 1–2 pieces for testing before placing a bulk order.
Q: Can I customize the wheel color or bracket finish?
A: Yes! We offer full OEM/ODM customization. You can choose custom wheel colors, bracket finishes, and even branded packaging with your logo. Custom orders have their own MOQ — contact us for details.
Q: Will these casters scratch or leave marks on my floors?
A: Not at all. Our PVC wheels are non-marking and floor-friendly. They roll smoothly and quietly on tile, concrete, vinyl, and other hard surfaces without leaving scuffs or stains.
Q: These have a top plate — how do I install them on my equipment?
A: Simply bolt the top plate onto the equipment base using the pre-drilled mounting holes. Bolt spacing and hole diameters are clearly marked in the spec table above. Use M5–8 bolts (depending on model size) — no special tools needed.
Q: How do I know this caster can handle my equipment's weight?
A: Each caster supports up to 75 kg individually. For a 4-caster setup, the total safe working load is around 262 kg (safety margin included). Always distribute weight evenly across all casters. If you're unsure, our team can help you pick the right model.
Q: What is the typical lead time for orders?
A: Sample orders ship within 3–5 business days. Standard bulk orders typically take 15–25 days, depending on quantity. Custom orders may take a bit longer — we'll confirm the exact timeline when you order.
Company Profile
SUMATIC CASTER, established in 2020 in Zhongshan City, China, is a global provider of caster solutions, offering over 40 product series and more than 1,000 models. We specialize in high-performance casters for furniture, industrial, medical, and commercial applications, aiming to enhance equipment mobility and user experience.
Manufacturing Facility
Quality Control
Our Certificates
Exhibition
Our Services
Packaging & Shipping
Technical Specifications Table
Common Specifications: Wheel = PVC (Polyvinyl Chloride), Blue Grey | Bracket = Steel-Zinc Plated | Bearing = Plain Bore
Top Plate Mount Models
| Photo | Model | Size | Wheel Diameter | Wheel Width | Load Capacity | Overall Height | Plate Size | Bolt Spacing | Bolt Ø | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|
|
SC0402-A03L | 2.0" | 50 mm | 17 mm | 30 kg | 72 mm | 50×50 mm | 35×35 mm | 6.2 mm | Rigid Caster |
| SC0450-A03L | 2.5" | 65 mm | 21 mm | 40 kg | 90 mm | 65×65 mm | 45×45 mm | 8.3 mm | Rigid Caster | |
| SC0403-A03L | 3.0" | 75 mm | 21 mm | 50 kg | 101 mm | 65×65 mm | 45×45 mm | 8.3 mm | Rigid Caster | |
| SC0404-A03L | 4.0" | 100 mm | 27 mm | 65 kg | 125 mm | 75×75 mm | 55×55 mm | 8.3 mm | Rigid Caster | |
| SC0405-A03L | 5.0" | 125 mm | 27 mm | 75 kg | 150 mm | 75×75 mm | 55×55 mm | 8.3 mm | Rigid Caster | |
|
SC0402-B03L | 2.0" | 50 mm | 17 mm | 30 kg | 72 mm | 50×50 mm | 35×35 mm | 6.2 mm | Swivel Plate |
| SC0450-B03L | 2.5" | 65 mm | 21 mm | 40 kg | 90 mm | 65×65 mm | 45×45 mm | 8.3 mm | Swivel Plate | |
| SC0403-B03L | 3.0" | 75 mm | 21 mm | 50 kg | 101 mm | 65×65 mm | 45×45 mm | 8.3 mm | Swivel Plate | |
| SC0404-B03L | 4.0" | 100 mm | 27 mm | 65 kg | 125 mm | 75×75 mm | 55×55 mm | 8.3 mm | Swivel Plate | |
| SC0405-B03L | 5.0" | 125 mm | 27 mm | 75 kg | 150 mm | 75×75 mm | 55×55 mm | 8.3 mm | Swivel Plate | |
|
|
SC0402-C03L | 2.0" | 50 mm | 17 mm | 30 kg | 72 mm | 50×50 mm | 35×35 mm | 6.2 mm | Plate with Brake |
| SC0450-C03L | 2.5" | 65 mm | 21 mm | 40 kg | 90 mm | 65×65 mm | 45×45 mm | 8.3 mm | Plate with Brake | |
| SC0403-C03L | 3.0" | 75 mm | 21 mm | 50 kg | 101 mm | 65×65 mm | 45×45 mm | 8.3 mm | Plate with Brake | |
| SC0404-C03L | 4.0" | 100 mm | 27 mm | 65 kg | 125 mm | 75×75 mm | 55×55 mm | 8.3 mm | Plate with Brake | |
| SC0405-C03L | 5.0" | 125 mm | 27 mm | 75 kg | 150 mm | 75×75 mm | 55×55 mm | 8.3 mm | Plate with Brake |
Type A = Rigid Caster | Type B = Swivel Plate | Type C = Plate with Brake
