Best SellerC21

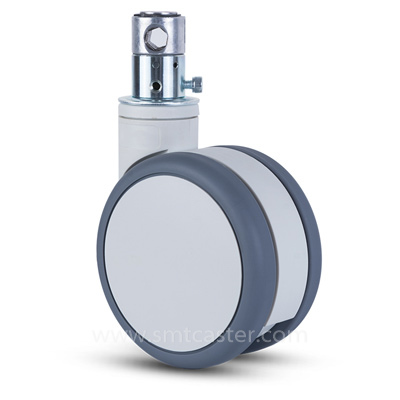

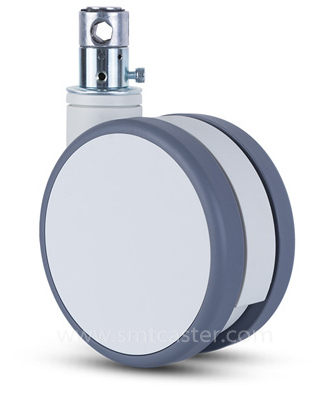

5.0-8.0 Inch Medium Grey TPR Plug In Stem Medical Caster Wheels (160kg)
Step 1: Mounting Style
Rigid
✓
Swivel Plate
✓
Threaded Stem
✓
Bolt Hole
✓
Swivel Stem
✓
Stem Ring
✓
Expanding Stem
✓
Others
✓
Step 2: Wheel Diameter
5“(125mm)
6“(150mm)
8 Core Advantages of TPU Hospital Bed Central Control Casters (D/T Two/Three-Function Locking with Double Ball Bearing)
- Two-Function (D) & Three-Function (T) Options: D-type: two-function — free swivel + full lock. T-type: three-function — adds directional lock for straight-line corridor tracking.
- TPU (Thermoplastic Polyurethane) Tread: Premium TPU offers exceptional abrasion resistance and chemical tolerance. Withstands hospital-grade disinfectants. Long service life.
- PA (Nylon) Housing: Engineering-grade PA nylon housing provides high impact strength. Resists disinfectants and cleaning agents. Lightweight yet robust.
- Selectable 30 / 45° Cam Angle: 30° cam for quick-response in ER/ICU. 45° cam for maximum holding force on heavy bariatric beds.
- Directional Lock (T-Type): T-type three-function caster locks wheel direction while allowing swivel. Bed moves only in a straight line for corridor safety.
- Double Ball Bearing — Silent Operation: Precision dual ball bearing raceway ensures whisper-quiet operation even under full medical load.
- 100,000+ Cycle Reliability: Engineered for 100,000+ lock/unlock cycles under continuous hospital conditions. Reduces maintenance and replacement frequency.
- Universal Central Rod Compatibility: Works with standard Φ32 and Φ28 mm central control rods. Compatible with most hospital bed brands worldwide.
Detailed Technical Properties
| Tread Material | TPU (Thermoplastic Polyurethane), Grey |
|---|---|
| Wheel Hardness | 92 +/- 3 Shore A |
| Housing Material | PA (Polyamide / Nylon) |
| Bearing Type | Double Ball Bearing Raceway |
| Locking Type | D: Two-Function / T: Three-Function (+Direction Lock) |
| Cam Locking Angle | 30° or 45° (selectable) |
| Operating Temperature | -20°C to +60°C |
| Floor Protection | Excellent — Non-marking, Chemical resistant |
| Noise Level | Very Low — Silent rolling |
| Finish | PA Natural / Powder Coated |
Downloads
Applications
Suitable Industries & Applications
Hospital Beds
Medical Bedding — Nursing Beds
ICU Beds
Rehabilitation Beds
Elderly Care Beds
Medical Treatment Beds
Examination Beds
Surgical Tables (with cover)
Medical Stretchers
Hospital Furniture — Cabinets
Medical Carts — Bedside
Dialysis Chairs
Recommended Usage
Suitable
Hospital wards and medical facilities
Suitable
Medical beds and bedding equipment
Suitable
Smooth hospital hard flooring (vinyl, tile, epoxy)
Suitable
Central control locking system beds
Not Recommended
Outdoor or rough surfaces
Not Recommended
Non-medical furniture or equipment
Not Recommended
Without central control rod compatibility
Not Recommended
Heavy industrial or construction applications
FAQ
Q: What is the minimum order quantity? Can I order samples first?
A: Our standard MOQ is 100 pieces per model. Sample orders are welcome.
Q: Can I customize the wheel color or bracket finish?
A: Yes! We offer full OEM/ODM customization. Custom wheel colors, bracket finishes, and branded packaging are all available.
Q: Will these casters scratch or leave marks on my floors?
A: Not at all. Our wheels are non-marking and floor-friendly. They roll smoothly on tile, concrete, vinyl and other hard surfaces.
Q: How do I install these casters on my equipment?
A: Simply bolt the caster onto the equipment base using the pre-drilled mounting holes. Bolt spacing is clearly marked in the spec table.
Q: How do I know this caster can handle my equipment weight?
A: Each caster has a rated load capacity. For a 4-caster setup, multiply single caster capacity by 3 for safety margin.
Q: What is the typical lead time for orders?
A: Sample orders ship within 3-5 business days. Bulk orders typically take 15-25 days depending on quantity.
Company Profile
SUMATIC CASTER, established in 2020 in Zhongshan City, China, is a global provider of caster solutions, offering over 40 product series and more than 1,000 models. We specialize in high-performance casters for furniture, industrial, medical, and commercial applications, aiming to enhance equipment mobility and user experience.
Manufacturing Facility
Quality Control
Our Certificates
Exhibition
Our Services
Packaging & Shipping
Technical Specifications Table
Common: Tread = TPU (Thermoplastic Polyurethane), Grey | Housing = PA (Nylon) | Bearing = Double Ball Bearings | Cam = 30/45 deg Selectable
Central Control Stem Mount Models
| Photo | Model | Size | Wheel Diameter | Wheel Width | Load Capacity | Overall Height | Stem Spec | Function |
|---|---|---|---|---|---|---|---|---|
|
SCC2105-02DS | 5.0" | 125 mm | 75 mm | 100 kg | 153 mm | Φ32×50 mm | Two-Function |
| SCC2106-02DS | 6.0" | 150 mm | 76 mm | 130 kg | 166 mm | Φ32×50 mm | Two-Function | |
| SCC2105-02TS | 5.0" | 125 mm | 75 mm | 100 kg | 153 mm | Φ32×50 mm | Three-Function | |
| SCC2106-02TS | 6.0" | 150 mm | 76 mm | 130 kg | 166 mm | Φ32×50 mm | Three-Function | |
| SCC2105-02DL | 5.0" | 125 mm | 75 mm | 100 kg | 153 mm | Φ28×96 mm | Two-Function | |
| SCC2106-02DL | 6.0" | 150 mm | 76 mm | 130 kg | 166 mm | Φ28×96 mm | Two-Function | |
| SCC2105-02TL | 5.0" | 125 mm | 75 mm | 100 kg | 153 mm | Φ28×96 mm | Three-Function | |
| SCC2106-02TL | 6.0" | 150 mm | 76 mm | 130 kg | 166 mm | Φ28×96 mm | Three-Function |
D = Two-Function | T = Three-Function (+Direction Lock) | S = Short Stem | L = Long Stem
